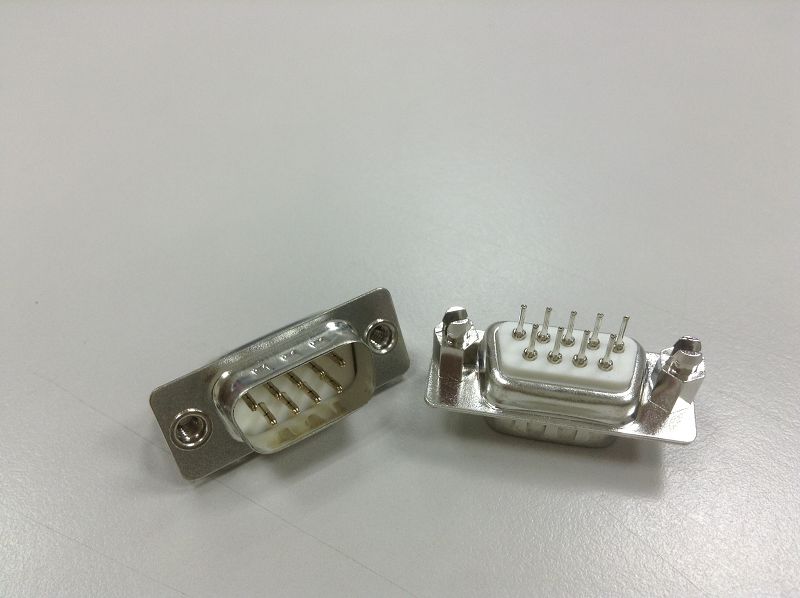

• 345 series D-sub Connector Dip Straight- EMI type

    345 series D-sub Connector Dip Straight- EMI type

    Technical data:
    Material and finish:
    Shell: steel tin. coat over nickel
    Insulator: Thermoplastic polyester
                        self-extinguishing rated 94V-0
    Contact: Copper alloy
    Contact surface: Gold plated over nickel
    Operating temperature: -55℃ to + 105℃
    Electrical data:
    Current rating:     5A
    Contact resistance: 30Mohm Max. at DC 100MA
    Insulation resistance: 1000Mohm min. at DC 500V
    Voltage: AC 1000V for 1minute

    View customer Drawing (Pdf)

345 series D-sub Connector Dip Straight- EMI type

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 345
Nr. of Contact
Terminal Type
Shell option
Mounting method
Hexagonal Bolt Option
Plating Option
Insulator color
