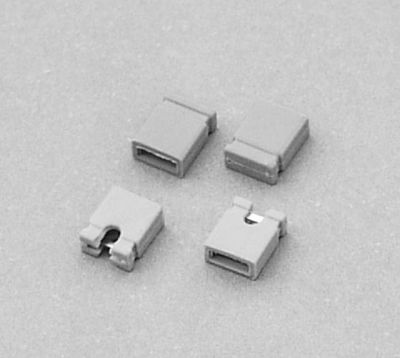

165 series Jumper open and closed pitch 2.54mm for Square pins

Technical data:
Insulator Material: Thermoplastic,UL 94V-0

Contact: stamped and formed, Phosphor Bronze

Plating: Au or Sn over Nickel

Current Rating: 3 Amp

Contact resistance: 20 milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Mates with: pitch 2.54mm,   0.635mm male header
