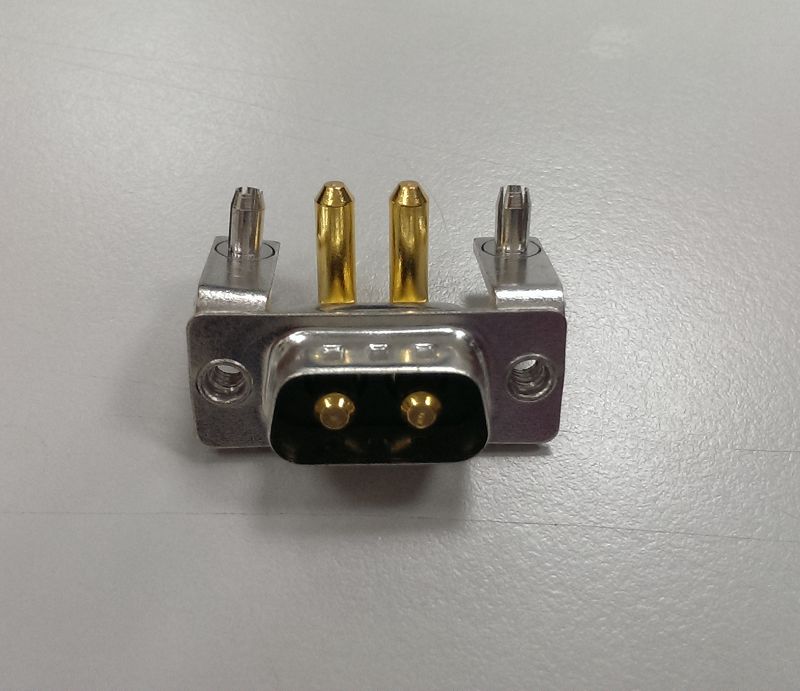

637 series D-Sub Coaxial Connectors
SPECIFICATIONS: Electrical characteristics: *Contact Current Rating: 5Amperes *Dielectric withanding voltage: AC 1000V r.m.s *Insulation Resistance: 5000Megohms Minimum. *Contact Resistance:30Milohms Maximum *Operating Temperature:-55℃ to +125℃ Mechanical characteristics: *Contact insertion Force:4.5kg Maximum. *Contact separator Force:0.3kg Minimum. Materials: *Contact:Brass *Insulator: PBT UL 94V-0 Rated *Shell:steel *Boardlock: Brass, Tin over ,Niclel Finish: *Coaxial pin: 50Ω , 70 Ω *Shell:TIN Plated over NickelOrdering Information D-Sub P.C.B Right Angle Type 1W1P(Coaxial) D-Sub P.C.B Right Angle Type 2W2P(Coaxial) D-Sub P.C.B Right Angle Type 3W3P(Coaxial) D-Sub P.C.B Right Angle Type 5W1P(Coaxial) D-Sub P.C.B Right Angle Type 5W5P(Coaxial) D-Sub P.C.B Right Angle Type 7W2P(Coaxial) D-Sub P.C.B Right Angle Type 8W8P(Coaxial) D-Sub P.C.B Right Angle Type 9W4P(Coaxial) D-Sub P.C.B Right Angle Type 11W1P(Coaxial) D-Sub P.C.B Right Angle Type 13W3P(Coaxial) D-Sub P.C.B Right Angle Type 13W6P(Coaxial) D-Sub P.C.B Right Angle Type 17W2P(Coaxial) D-Sub P.C.B Right Angle Type 17W5P(Coaxial) D-Sub P.C.B Right Angle Type 21W1P(Coaxial) D-Sub P.C.B Right Angle Type 21W4P(Coaxial) D-Sub P.C.B Right Angle Type 24W7P(Coaxial) D-Sub P.C.B Right Angle Type 25W3P(Coaxial) D-Sub P.C.B Right Angle Type 27W2P(Coaxial) D-Sub P.C.B Right Angle Type 36W4P(Coaxial) D-Sub P.C.B Right Angle Type 43W2P(Coaxial) D-Sub P.C.B Right Angle Type 47W1P(Coaxial) D-Sub P.C.B Right Angle Type 1W1P(Power) D-Sub P.C.B Right Angle Type 2W2P(Power) D-Sub P.C.B Right Angle Type 3W3P(Power) D-Sub P.C.B Right Angle Type 5W1P(Power) D-Sub P.C.B Right Angle Type 5W5P(Power) D-Sub P.C.B Right Angle Type 7W2P(Power) D-Sub P.C.B Right Angle Type 8W8P(Power) D-Sub P.C.B Right Angle Type 9W4P(Power) D-Sub P.C.B Right Angle Type 11W1P(Power) D-Sub P.C.B Right Angle Type 13W3P(Power) D-Sub P.C.B Right Angle Type 13W6P(Power) D-Sub P.C.B Right Angle Type 17W2P(Power) D-Sub P.C.B Right Angle Type 17W5P(Power) D-Sub P.C.B Right Angle Type 21W1P(Power) D-Sub P.C.B Right Angle Type 21W4P(Power) D-Sub P.C.B Right Angle Type 24W7P(Power) D-Sub P.C.B Right Angle Type 25W3P(Power) D-Sub P.C.B Right Angle Type 27W2P(Power) D-Sub P.C.B Right Angle Type 36W4P(Power) D-Sub P.C.B Right Angle Type 43W2P(Power) D-Sub P.C.B Right Angle Type 47W1P(Power)
