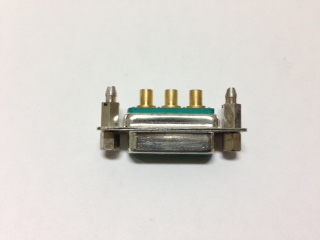

636series D-Sub Coaxial Connectors
SPECIFICATIONS:
Electrical characteristics:
*Dielectric withanding voltage: AC 1000V r.m.s
*Insulation Resistance: 5000Megohms Minimum.
*Contact Resistance:30Milohms Maximum
*Operating Temperature:-55℃ to +125℃
Mechanical characteristics:
*Contact insertion Force:4.5kg Maximum.
*Contact separator Force:0.3kg Minimum.
Materials:
*Insulator: PBT UL 94V-0 Rated
*Shell:steel
Finish:
*Shell:TIN Plated over NickelOrdering Information D-Sub P.C.B STRAIGHT TYPE 1W1P D-Sub P.C.B STRAIGHT TYPE 2W2P D-Sub P.C.B STRAIGHT TYPE 3W3P D-Sub P.C.B STRAIGHT TYPE 5W1P D-Sub P.C.B STRAIGHT TYPE 5W5P D-Sub P.C.B STRAIGHT TYPE 7W2P D-Sub P.C.B STRAIGHT TYPE 8W8P D-Sub P.C.B STRAIGHT TYPE 9W4P D-Sub P.C.B STRAIGHT TYPE 11W1P D-Sub P.C.B STRAIGHT TYPE 13W3P D-Sub P.C.B STRAIGHT TYPE 13W6P D-Sub P.C.B STRAIGHT TYPE 17W2P D-Sub P.C.B STRAIGHT TYPE 17W5P D-Sub P.C.B STRAIGHT TYPE 21W1P D-Sub P.C.B STRAIGHT TYPE 21W4P D-Sub P.C.B STRAIGHT TYPE 24W7P D-Sub P.C.B STRAIGHT TYPE 25W3P D-Sub P.C.B STRAIGHT TYPE 27W2P D-Sub P.C.B STRAIGHT TYPE 36W4P D-Sub P.C.B STRAIGHT TYPE 43W2P D-Sub P.C.B STRAIGHT TYPE 47W1P D-Sub P.C.B SOLDER TYPE 1W1P D-Sub P.C.B SOLDER TYPE 2W2P D-Sub P.C.B SOLDER TYPE 3W3P D-Sub P.C.B SOLDER TYPE 5W1P D-Sub P.C.B SOLDER TYPE 5W5P D-Sub P.C.B SOLDER TYPE 7W2P D-Sub P.C.B SOLDER TYPE 8W8P D-Sub P.C.B SOLDER TYPE 9W4P D-Sub P.C.B SOLDER TYPE 11W1P D-Sub P.C.B SOLDER TYPE 13W3P D-Sub P.C.B SOLDER TYPE 13W6P D-Sub P.C.B SOLDER TYPE 17W2P D-Sub P.C.B SOLDER TYPE 17W5P D-Sub P.C.B SOLDER TYPE 21W1P D-Sub P.C.B SOLDER TYPE 21W4P D-Sub P.C.B SOLDER TYPE 24W7P D-Sub P.C.B SOLDER TYPE 25W3P D-Sub P.C.B SOLDER TYPE 27W2P D-Sub P.C.B SOLDER TYPE 36W4P D-Sub P.C.B SOLDER TYPE 43W2P D-Sub P.C.B SOLDER TYPE 47W1P
