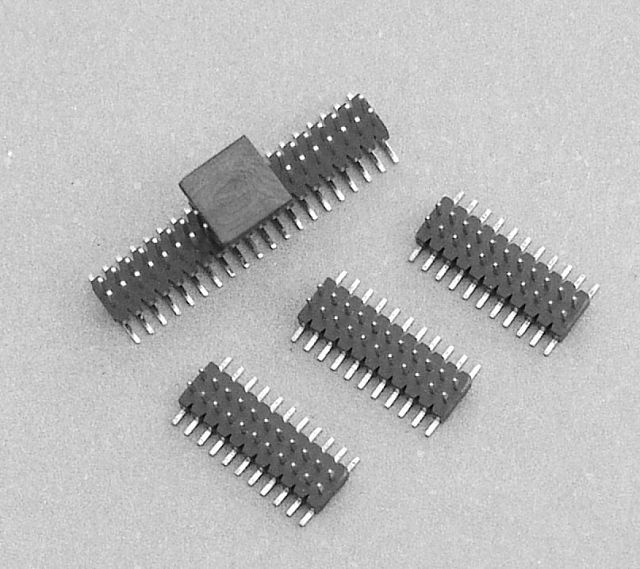

• 596 series 1.0mm Pitch strip header SMT Type

    596 series 1.0mm Pitch strip header SMT Type

    Technical data:
    Insulator Material:     High Temperature      Thermoplastic,UL 94V-0

    Contact: 0.30 x 0.30mm

    Contact  Material: copper alloy

    Plating: Au or Sn over Nickle

    Current Rating: 1 Amp

    Insulator resistance: 500 Megohms min.

    Dielectric withstanding: AC 500V for 1 Minute.

    Operating Temperature: -40 ℃to + 105 ℃.

    Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

    Mates with: 597

    596 SMT
