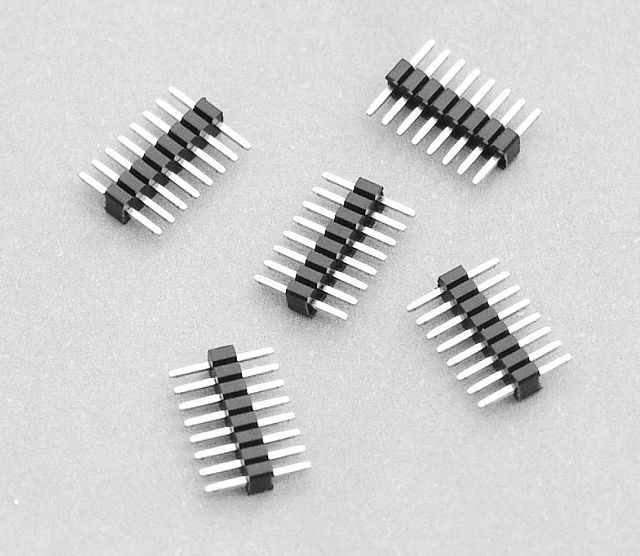

    600 series Pin Header Strip 1.27mm pitch

    600 series Pin Header Strip 1.27mm pitch

    Technical data:
    Insulator Material:     High Temperature      Thermoplastic,UL 94V-0

    Contact: 0.46* 0.46mm

    Contact  Material:copper alloy

    Plating:

    Current Rating: 1 Amp

    Insulator resistance: 500 Megohms min.

    Dielectric withstanding: AC 500V for 1 Minute.

    Operating Temperature: -40 ℃to + 105 ℃.

    Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

    Mates with: 317,377,603,604

    View customer Drawing (Pdf)

600 series Pin Header Strip 1.27mm pitch
